UPS Omega X5 10kVA-30kVA
Karta katalogowa

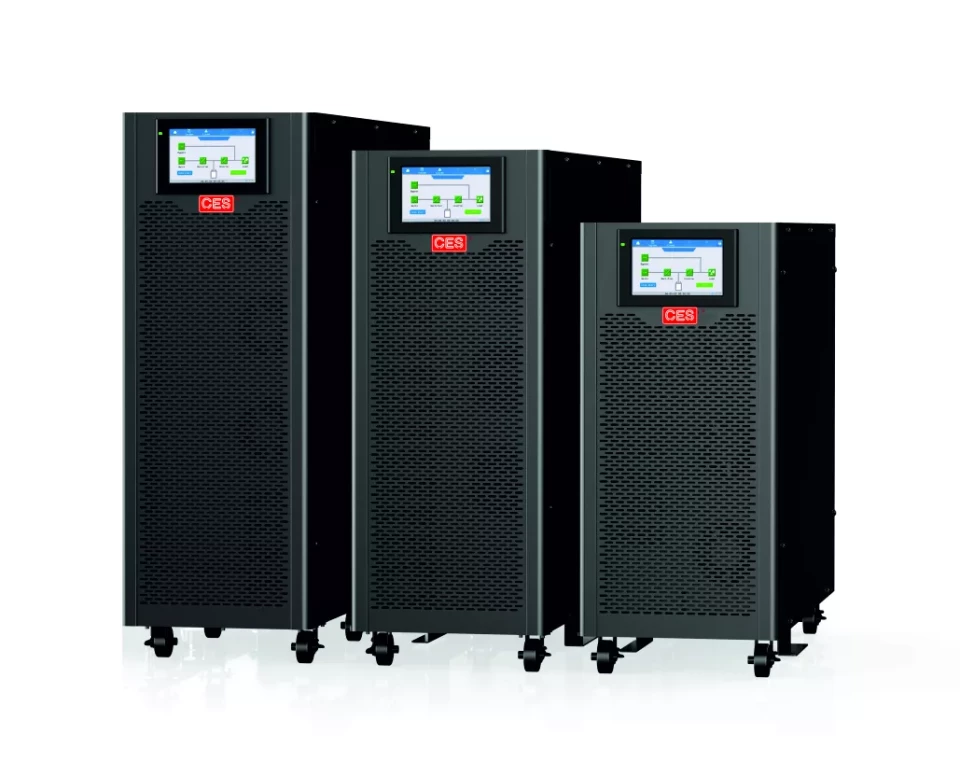

The Omega X5 is the latest series of online double-conversion CES power supplies, where the output power factor is 1. The Omega series power supplies are robust, reliable and modern UPS units with many advanced features and the possibility of parallel operation.
12 398 74 01Main features
- High frequency on-line double conversion technology
- Advanced dual-core DSP control technology and 3-level technology
- System efficiency is improved to 95%, energy saving rate is doubled
- Output power factor 1.0
- Wide input voltage range
- 50 / 60 Hz auto-sensing frequency
Characteristics
- Active power factor correction (APFC), input power factor up to 0.99
- Dual input design, supporting independent bypass
- Advanced digital and parallel technology, providing higher reliability than single system
- Wide input voltage range
- 50 / 60 Hz frequency conversion mode
- Work efficiency up to 98% in ECO mode
- Fan speed varies intelligently with load, reducing noise and extending its service life
- Conformal coating technology to make UPS operate in harsh environment for a long time
- Flexible battery configuration setting, selectable battery numbers: 32~ 40 pcs
- Digitally controlled charger (Max.10 A & 20% output power)
- Ability to switch on the UPS by battery in the absence of mains power (Cold start)
- Zero switching time for UPS power supply mode when the mains power is unstable, ensuring the output is uninterrupted
- Compact internal layout, small footprint
- 5 inches LCD colorful touch screen, friendly human & machine interface
- Powerful background software for parameters configuration and online upgrade
- Advanced multi-platform communication for UPS monitoring: RS232,USB,RS485,dry contacts, SNMP card with Modbus TCP
- Linear derating in low voltage input, reducing battery discharging times, extending the service life of battery
- Intelligent battery management, automatic equalized and float charging control, charger dormancy control, improving the reliability of charger and extending the battery life
- Effective hardware and software protection, robust self-diagnosis function, abundant event log for future check
Warranty
Specification
UPS Omega X5 10000
UPS Omega X5 15000
UPS Omega X5 20000
UPS Omega X5 30000
UPS model i moc
Model:
UPS CES Omega X5
Active power [W]:
10000
Nominal power [VA]:
10000
Input
Voltage:
380/400/415 V
Frequency [Hz]:
50/60
Frequency tolerance:
40-70 Hz
Power factor:
>0.99
By-pass voltage:
Selectable -20% - +15%; Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -25%
Input rated voltage [V]:
304-478 przy pełnym obciążeniu
Output
Number of phases:
3-phase
Voltage:
380/400/415
Total harmonic distortion THDv:
<1% pełne obciążenie liniowe, <3% pełne obciążenie nieliniowe, zgodnie z IEC/EN62040-3
Voltage tolerance:
+/-1%
Waveform:
Pure Sine Wave
Frequency [Hz]:
Synchronized with utility in mains mode, 50/60Hz±0.1% in battery mode
Frequency tolerance:
+/-1%
Transfer time [ms]:
0
Overload:
150% przez 200 ms
System
Display:
LCD
Others
Efficiency:
up to 95%
Communications:
RS232, USB, RS485, EPO, DRY contacts, Parallel kit; Option: SNMP card with Modbus TCP, SMS alarms
Protections:
Short-circut – overload – overtemperature – excessive low battery – overvoltage – undervoltage – fans failure
Operating temperature [ºC]:
0-40
Relative humidity:
0-95% (non condensing)
Dimensions (WxDxH) [mm]:
350x770x1085
Weight without battery [Kg]:
82
Parallel operation:
yes
UPS model i moc
Model:
UPS CES Omega X5
Active power [W]:
15000
Nominal power [VA]:
15000
Input
Voltage:
380/400/415 V
Frequency [Hz]:
50/60
Frequency tolerance:
40-70 Hz
Power factor:
>0.99
By-pass voltage:
Selectable -20% - +15%; Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -25%
Input rated voltage [V]:
304-478 full load
Output
Number of phases:
3-phase
Voltage:
380/400/415
Total harmonic distortion THDv:
<1% linear full load, <3% non-linear full load, according to IEC/EN62040-3
Voltage tolerance:
+/-1%
Waveform:
Pure Sine Wave
Frequency [Hz]:
Synchronized with utility in mains mode, 50/60Hz±0.1% in battery mode
Frequency tolerance:
+/-1%
Transfer time [ms]:
0
Overload:
150% for 200 ms
System
Display:
LCD
Others
Efficiency:
up to 95%
Communications:
RS232, USB, RS485, EPO, DRY contacts, Parallel kit; Option: SNMP card with Modbus TCP, SMS alarms
Protections:
Short-circut – overload – overtemperature – excessive low battery – overvoltage – undervoltage – fans failure
Operating temperature [ºC]:
0-40
Relative humidity:
0-95% (non condensing)
Dimensions (WxDxH) [mm]:
350x770x1085
Weight without battery [Kg]:
84
Parallel operation:
yes
UPS model i moc
Model:
UPS CES Omega X5
Active power [W]:
20000
Nominal power [VA]:
20000
Input
Voltage:
380/400/415 V
Frequency [Hz]:
50/60
Frequency tolerance:
40-70 Hz
Power factor:
>0.99
By-pass voltage:
Selectable -20% - +15%; Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -25%
Input rated voltage [V]:
304-478 full load
Output
Number of phases:
3-phase
Voltage:
380/400/415
Total harmonic distortion THDv:
<1% full linear load, <3% full non-linear load, according to IEC/EN62040-3
Voltage tolerance:
+/-1%
Waveform:
Pure Sine Wave
Frequency [Hz]:
Synchronized with utility in mains mode, 50/60Hz±0.1% in battery mode
Frequency tolerance:
+/-1%
Transfer time [ms]:
0
Overload:
150% for 200 ms
System
Display:
LCD
Others
Efficiency:
up to 95%
Communications:
RS232, USB, RS485, EPO, DRY contacts, Parallel kit; Option: SNMP card with Modbus TCP, SMS alarms
Protections:
Short-circut – overload – overtemperature – excessive low battery – overvoltage – undervoltage – fans failure
Operating temperature [ºC]:
0-40
Relative humidity:
0-95% (non condensing)
Dimensions (WxDxH) [mm]:
350x770x1085
Weight without battery [Kg]:
102
Parallel operation:
yes
UPS model i moc
Model:
UPS CES Omega X5
Active power [W]:
30000
Nominal power [VA]:
30000
Input
Voltage:
380/400/415 V
Frequency [Hz]:
50/60
Frequency tolerance:
40-70 Hz
Power factor:
>0.99
By-pass voltage:
Selectable -20% - +15%; Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -25%
Input rated voltage [V]:
304-478 full load
Output
Number of phases:
3-phase
Voltage:
380/400/415
Total harmonic distortion THDv:
<1% full linear load, <3% full non-linear load, according to IEC/EN62040-3
Voltage tolerance:
+/-1%
Waveform:
Pure Sine Wave
Frequency [Hz]:
Synchronized with utility in mains mode, 50/60Hz±0.1% in battery mode
Frequency tolerance:
+/-1%
Transfer time [ms]:
0
Overload:
150% for 200 ms
System
Display:
LCD
Others
Efficiency:
up to 95%
Communications:
RS232, USB, RS485, EPO, DRY contacts, Parallel kit; Option: SNMP card with Modbus TCP, SMS alarms
Protections:
Short-circut – overload – overtemperature – excessive low battery – overvoltage – undervoltage – fans failure
Operating temperature [ºC]:
0-40
Relative humidity:
0-95% (non condensing)
Dimensions (WxDxH) [mm]:
350x810x1085
Weight without battery [Kg]:
109
Parallel operation:
yes
