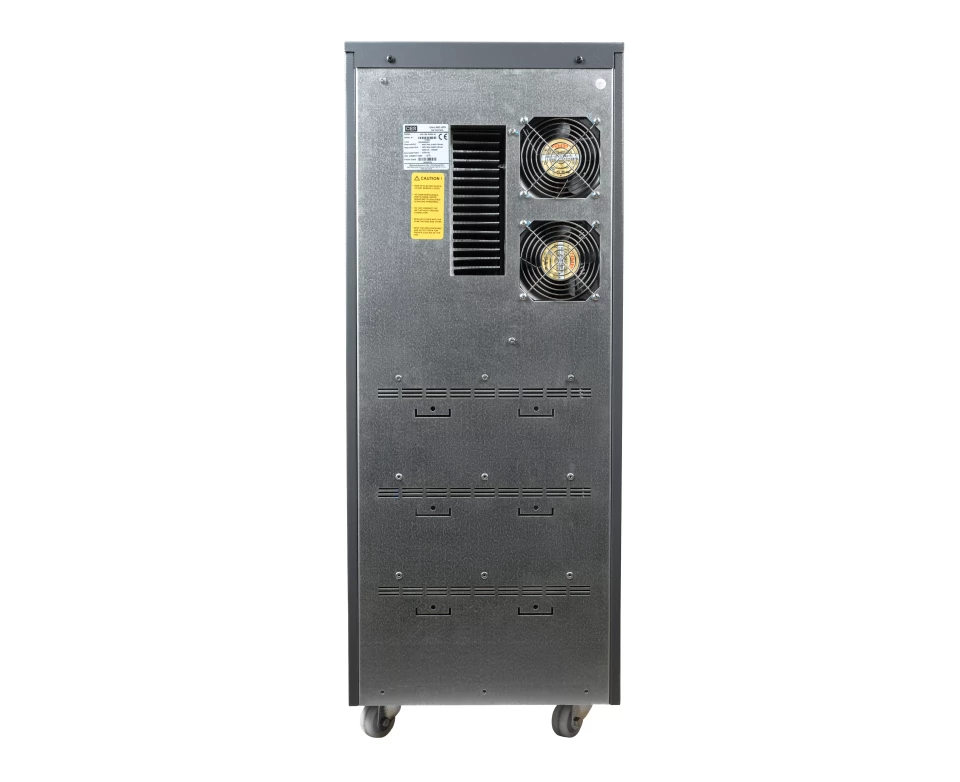

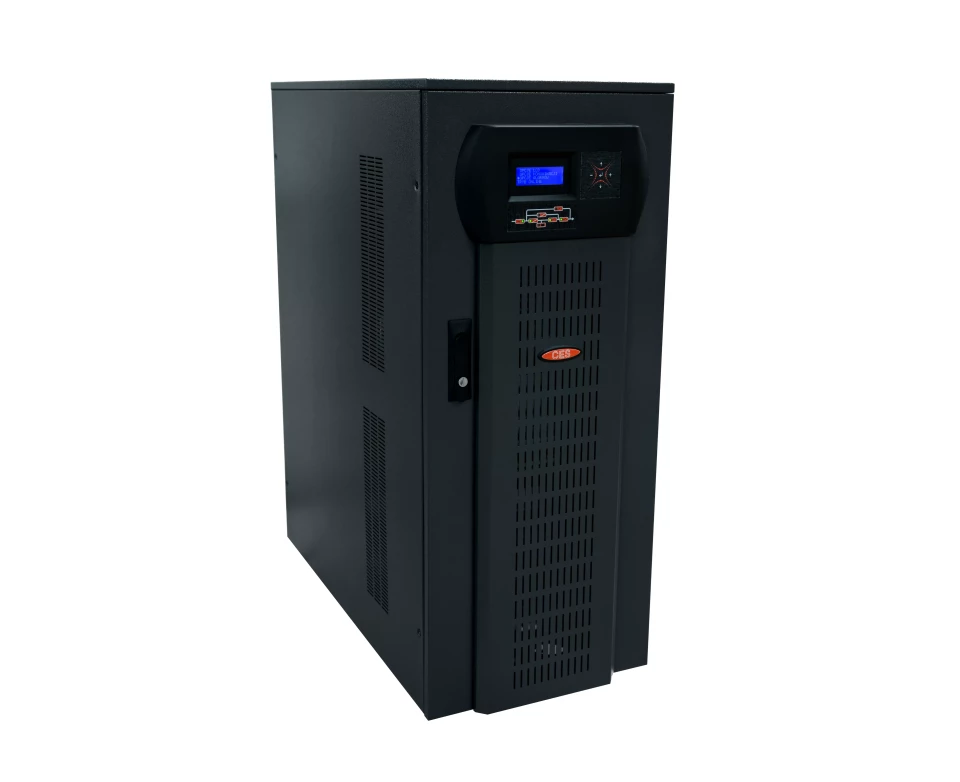

UPS CES Sigma 10kVA-80kVA
The CES brand power supply series: CES Sigma UPS 10kVA-80kVA combines a high-quality rectifier made with IGBT technology and modern DSP digital control technology. This ensures high efficiency, reliability and extensive functionality of the unit. Thanks to the use of the latest technology, the CES Sigma UPS achieves very high efficiency, regardless of the electrical environment in which it operates.
12 398 74 01Main features
- True online topology
- Low THDi higher harmonic content of input current
- High input power factor = 0.9
- High efficiency of up to 94%
- IGBT rectifier
- DSP digital control (separate inverter and PFC controller)
- Cold start
- Static and service by-pass
- Overload and short circuit protection
- Automatic battery test
- Three-stage battery charging system with possible temperature compensation
- LCD screen
- Small footprint
- Separate power supply for rectifier and bypass lines
- Advanced remote control options (SNMP, MODBUS, GSM/GPRS, etc.)
- Compliant with IEC EN62040, ISO9001, ISO14001
- Complies with standards: CE, TSE and GOST
Characteristics
CES Sigma UPS is a good solution for demanding customers
CES Sigma UPS has the option to be equipped with an isolation transformer at the input and/or output of the unit. Adding the possibility of parallel operation of up to 8 units, as well as communication and management via SNMP, MODBUS, GSM/GPRS protocols - the unit will be the ideal solution for even the most demanding customers.
Specification
UPS CES Sigma 10/ Sigma 10S
UPS CES Sigma 15
UPS CES Sigma 20/ Sigma 20S
UPS CES Sigma 30
UPS CES Sigma 40
UPS CES Sigma 60
UPS CES Sigma 80
UPS model i moc
Model:
UPS CES Sigma 10/ Sigma 10S
Active power [W]:
9000
Nominal power [VA]:
10000
Input
Voltage:
380/400 Vac 3 phase+N+PE +/-20% (415 Vac +15%, -25% optional)
Voltage tolerance:
+/- 20% (415 +15%. -25% optional)
Frequency [Hz]:
50/60
Frequency tolerance:
+/-5%
Power factor:
≥0.99
Voltage distortion:
≤4%; ≤3% for Sigma 10
By-pass voltage:
380/400 Vac 3 phase+N, 4 wires, +/-10%
Protections:
Fuses-Voltage and Frequency tolerance-Input power limit-Phase sequency indicator-advances short circuit-Voltage tolerance-DC balance-Regenerative load-Current limiting
Batteries
Batteries type:
VRLA AGM/GEL/NiCd
Nominal voltage:
+/- 360Vdc
Start and end of battery discharge voltage:
+/- 405 Vdc/+/-300Vdc
Battery ambient temperature [°C]:
25
Protections:
3 level alarms, Battery fuses, Charging current limit, temperature compensation (optional)
Automatic testing:
Standard every 72h (adjustable)
Output
Power factor:
0.9
Voltage:
380/400 Vac 3 phase+N (415 optional)
Total harmonic distortion THDv:
<3% (100 linear load)
Crest factor:
3:1
Voltage tolerance:
+/- 1%
Frequency [Hz]:
50/60
Frequency tolerance:
Line synchronized: +/-2%; free running: +/-0.1%
Transfer time [ms]:
0
Overload:
100-125% for 10 min; 125-150% for 1 min, >150% via by-pass
Efficiency:
94.5%
Others
Communications:
2xRS232 serial ports, 4 standard lub 8 optional DRY contact alarm relays
Indicators:
P-N voltage, P-P volatge, Current, Power, Crest factor, Frequency, PF, Service time
Input:
EPO, Genset
Alarm logging:
Standard: with time and date 512 events
Protections:
Over temperature, Over current, Temperature high alarm
Standards:
EN62040-1, EN62040-2, EN62040-3
Protection degree:
IP 20
Operating temperature [ºC]:
0-40
Relative humidity:
90% max. (non-condensing)
Dimensions (WxDxH) [mm]:
1040x400x815; 1165x300x790 (Sigma 10S)
Weight without battery [Kg]:
87; 47.4 ( Sigma 10S)
Parallel operation:
Yes, up to 8 units (except the models Sigma 10S and 20S)
UPS model i moc
Model:
UPS CES Sigma 15
Active power [W]:
13500
Nominal power [VA]:
15000
Input
Voltage:
380/400 Vac 3 fazy+N+PE +/-20% (415 Vac +15%, -25% optional)
Voltage tolerance:
+/- 20% (415 +15%. -25% optional)
Frequency [Hz]:
50/60
Frequency tolerance:
+/-5%
Power factor:
≥0.99
Voltage distortion:
≤3%
By-pass voltage:
380/400 Vac 3 phase+N, 4 wires, +/-10%
Protections:
Fuses-Voltage and Frequency tolerance-Input power limit-Phase sequency indicator-advances short circuit-Voltage tolerance-DC balance-Regenerative load-Current limiting
Batteries
Batteries type:
VRLA AGM/GEL/NiCd
Nominal voltage:
+/- 360Vdc
Start and end of battery discharge voltage:
+/- 405 Vdc/+/-300Vdc
Battery ambient temperature [°C]:
25
Protections:
3 level alarms, Battery fuses, Charging current limit, temperature compensation (optional)
Automatic testing:
Standard every 72h (adjustable)
Output
Power factor:
0.9
Voltage:
380/400 Vac 3 phase+N (415 optional)
Total harmonic distortion THDv:
<3% (100% linear load)
Crest factor:
3:1
Voltage tolerance:
+/- 1%
Frequency [Hz]:
50/60
Frequency tolerance:
Line synchronized: +/-2%; free running: +/-0.1%
Transfer time [ms]:
0
Overload:
100-125% for 10 min; 125-150% for 1 min, >150% via by-pass
Efficiency:
up to 95%
Others
Communications:
2xRS232 serial ports, 4 standard lub 8 optional DRY contact alarm relays
Indicators:
P-N voltage, P-P volatge, Current, Power, Crest factor, Frequency, PF, Service time
Input:
EPO, Genset
Alarm logging:
Standard: with time and date 512 events
Protections:
Over temperature, Over current, Temperature high alarm
Standards:
EN62040-1, EN62040-2, EN62040-3
Protection degree:
IP 20
Operating temperature [ºC]:
0-40
Relative humidity:
90% max. (non-condensing)
Dimensions (WxDxH) [mm]:
1040x400x815
Weight without battery [Kg]:
87
Parallel operation:
Yes, up to 8 units (except the models Sigma 10S and 20S)
UPS model i moc
Model:
UPS CES Sigma 20/ Sigma 20S
Active power [W]:
18000
Nominal power [VA]:
20000
Input
Voltage:
380/400 Vac 3 fazy+N+PE +/-20% (415 Vac +15%, -25% optional)
Voltage tolerance:
+/- 20% (415 +15%. -25% optional)
Frequency [Hz]:
50/60
Frequency tolerance:
+/-5%
Power factor:
≥0.99
Voltage distortion:
≤3% ; ≤4% for Sigma 20S
By-pass voltage:
380/400 Vac 3 phase+N, 4 wires, +/-10%
Protections:
Fuses-Voltage and Frequency tolerance-Input power limit-Phase sequency indicator-advances short circuit-Voltage tolerance-DC balance-Regenerative load-Current limiting
Batteries
Batteries type:
VRLA AGM/GEL/NiCd
Nominal voltage:
+/- 360Vdc
Start and end of battery discharge voltage:
+/- 405 Vdc/+/-300Vdc
Battery ambient temperature [°C]:
25
Protections:
3 level alarms, Battery fuses, Charging current limit, temperature compensation (optional)
Automatic testing:
Standard every 72h (adjustable)
Output
Power factor:
0.9
Voltage:
380/400 Vac 3 phase+N (415 optional)
Total harmonic distortion THDv:
<3% (100% linear load)
Crest factor:
3:1
Voltage tolerance:
+/- 1%
Frequency [Hz]:
50/60
Frequency tolerance:
Line synchronized: +/-2%; free running: +/-0.1%
Transfer time [ms]:
0
Overload:
100-125% for 10 min; 125-150% for 1 min, >150% via by-pass
Efficiency:
up to 95%; 93% Sigma 20S
Others
Communications:
2xRS232 serial ports, 4 standard lub 8 optional DRY contact alarm relays
Indicators:
P-N voltage, P-P volatge, Current, Power, Crest factor, Frequency, PF, Service time
Input:
EPO, Genset
Alarm logging:
Standard: with time and date 512 events
Protections:
Over temperature, Over current, Temperature high alarm
Standards:
EN62040-1, EN62040-2, EN62040-3
Protection degree:
IP 20
Operating temperature [ºC]:
0-40
Relative humidity:
90% max. (non-condensing)
Dimensions (WxDxH) [mm]:
1040x400x815; 1165x300x790 (Sigma 20S)
Weight without battery [Kg]:
91; 51 (Sigma 20S)
Parallel operation:
Yes, up to 8 units (except the models Sigma 10S and 20S)
UPS model i moc
Model:
UPS CES Sigma 30
Active power [W]:
27000
Nominal power [VA]:
30000
Input
Voltage:
380/400 Vac 3 fazy+N+PE +/-20% (415 Vac +15%, -25% optional)
Voltage tolerance:
+/- 20% (415 +15%. -25% optional)
Frequency [Hz]:
50/60
Frequency tolerance:
+/-5%
Power factor:
≥0.99
Voltage distortion:
≤3%
By-pass voltage:
380/400 Vac 3 phase+N, 4 wires, +/-10%
Protections:
Fuses-Voltage and Frequency tolerance-Input power limit-Phase sequency indicator-advances short circuit-Voltage tolerance-DC balance-Regenerative load-Current limiting
Batteries
Batteries type:
VRLA AGM/GEL/NiCd
Nominal voltage:
+/- 360Vdc
Start and end of battery discharge voltage:
+/- 405 Vdc/+/-300Vdc
Battery ambient temperature [°C]:
25
Protections:
3 level alarms, Battery fuses, Charging current limit, temperature compensation (optional)
Automatic testing:
Standard every 72h (adjustable)
Output
Power factor:
0.9
Voltage:
380/400 Vac 3 phase+N (415 optional)
Total harmonic distortion THDv:
<3% (100% linear load)
Crest factor:
3:1
Voltage tolerance:
+/- 1%
Frequency [Hz]:
50/60
Frequency tolerance:
Line synchronized: +/-2%; free running: +/-0.1%
Transfer time [ms]:
0
Overload:
100-125% for 10 min; 125-150% for 1 min, >150% via by-pass
Efficiency:
up to 95%
Others
Communications:
2xRS232 serial ports, 4 standard lub 8 optional DRY contact alarm relays
Indicators:
P-N voltage, P-P volatge, Current, Power, Crest factor, Frequency, PF, Service time
Input:
EPO, Genset
Alarm logging:
Standard: with time and date 512 events
Protections:
Over temperature, Over current, Temperature high alarm
Standards:
EN62040-1, EN62040-2, EN62040-3
Protection degree:
IP 20
Operating temperature [ºC]:
0-40
Relative humidity:
90% max. (non-condensing)
Dimensions (WxDxH) [mm]:
1040x400x815
Weight without battery [Kg]:
100
Parallel operation:
Yes, up to 8 units (except the models Sigma 10S and 20S)
UPS model i moc
Model:
UPS CES Sigma 40
Active power [W]:
36000
Nominal power [VA]:
40000
Input
Voltage:
380/400 Vac 3 fazy+N+PE +/-20% (415 Vac +15%, -25% optional)
Voltage tolerance:
+/- 20% (415 +15%. -25% optional)
Frequency [Hz]:
50/60
Frequency tolerance:
+/-5%
Power factor:
≥0.99
Voltage distortion:
≤3%
By-pass voltage:
380/400 Vac 3 phase+N, 4 wires, +/-10%
Protections:
Fuses-Voltage and Frequency tolerance-Input power limit-Phase sequency indicator-advances short circuit-Voltage tolerance-DC balance-Regenerative load-Current limiting
Batteries
Batteries type:
VRLA AGM/GEL/NiCd
Nominal voltage:
+/- 360Vdc
Start and end of battery discharge voltage:
+/- 405 Vdc/+/-300Vdc
Battery ambient temperature [°C]:
25
Protections:
3 level alarms, Battery fuses, Charging current limit, temperature compensation (optional)
Automatic testing:
Standard every 72h (adjustable)
Output
Power factor:
0.9
Voltage:
380/400 Vac 3 phase+N (415 optional)
Total harmonic distortion THDv:
<3% (100% linear load)
Crest factor:
3:1
Voltage tolerance:
+/- 1%
Frequency [Hz]:
50/60
Frequency tolerance:
Line synchronized: +/-2%; free running: +/-0.1%
Transfer time [ms]:
0
Overload:
100-125% for 10 min; 125-150% for 1 min, >150% via by-pass
Efficiency:
up to 95%
Others
Communications:
2xRS232 serial ports, 4 standard lub 8 optional DRY contact alarm relays
Indicators:
P-N voltage, P-P volatge, Current, Power, Crest factor, Frequency, PF, Service time
Input:
EPO, Genset
Alarm logging:
Standard: with time and date 512 events
Protections:
Over temperature, Over current, Temperature high alarm
Standards:
EN62040-1, EN62040-2, EN62040-3
Protection degree:
IP 20
Operating temperature [ºC]:
0-40
Relative humidity:
90% max. (non-condensing)
Dimensions (WxDxH) [mm]:
1440x515x855
Weight without battery [Kg]:
173
Parallel operation:
Yes, up to 8 units (except the models Sigma 10S and 20S)
UPS model i moc
Model:
UPS CES Sigma 60
Active power [W]:
54000
Nominal power [VA]:
60000
Input
Voltage:
380/400 Vac 3 fazy+N+PE +/-20% (415 Vac +15%, -25% optional)
Voltage tolerance:
+/- 20% (415 +15%. -25% optional)
Frequency [Hz]:
50/60
Frequency tolerance:
+/-5%
Power factor:
≥0.99
Voltage distortion:
≤3%
By-pass voltage:
380/400 Vac 3 phase+N, 4 wires, +/-10%
Protections:
Fuses-Voltage and Frequency tolerance-Input power limit-Phase sequency indicator-advances short circuit-Voltage tolerance-DC balance-Regenerative load-Current limiting
Batteries
Batteries type:
VRLA AGM/GEL/NiCd
Nominal voltage:
+/- 360Vdc
Start and end of battery discharge voltage:
+/- 405 Vdc/+/-300Vdc
Battery ambient temperature [°C]:
25
Protections:
3 level alarms, Battery fuses, Charging current limit, temperature compensation (optional)
Automatic testing:
Standard every 72h (adjustable)
Output
Power factor:
0.9
Voltage:
380/400 Vac 3 phase+N (415 optional)
Total harmonic distortion THDv:
<3% (100% linear load)
Crest factor:
3:1
Voltage tolerance:
+/- 1%
Frequency [Hz]:
50/60
Frequency tolerance:
Line synchronized: +/-2%; free running: +/-0.1%
Transfer time [ms]:
0
Overload:
100-125% for 10 min; 125-150% for 1 min, >150% via by-pass
Efficiency:
up to 95%
Others
Communications:
2xRS232 serial ports, 4 standard lub 8 optional DRY contact alarm relays
Indicators:
P-N voltage, P-P volatge, Current, Power, Crest factor, Frequency, PF, Service time
Input:
EPO, Genset
Alarm logging:
Standard: with time and date 512 events
Protections:
Over temperature, Over current, Temperature high alarm
Standards:
EN62040-1, EN62040-2, EN62040-3
Protection degree:
IP 20
Operating temperature [ºC]:
0-40
Relative humidity:
90% max. (non-condensing)
Dimensions (WxDxH) [mm]:
1440x515x855
Weight without battery [Kg]:
197
Parallel operation:
Yes, up to 8 units (except the models Sigma 10S and 20S)
UPS model i moc
Model:
UPS CES Sigma 80
Active power [W]:
72000
Nominal power [VA]:
80000
Input
Voltage:
380/400 Vac 3 fazy+N+PE +/-20% (415 Vac +15%, -25% optional)
Voltage tolerance:
+/- 20% (415 +15%. -25% optional)
Frequency [Hz]:
50/60
Frequency tolerance:
+/-5%
Power factor:
≥0.99
Voltage distortion:
≤3%
By-pass voltage:
380/400 Vac 3 phase+N, 4 wires, +/-10%
Protections:
Fuses-Voltage and Frequency tolerance-Input power limit-Phase sequency indicator-advances short circuit-Voltage tolerance-DC balance-Regenerative load-Current limiting
Batteries
Batteries type:
VRLA AGM/GEL/NiCd
Nominal voltage:
+/- 360Vdc
Start and end of battery discharge voltage:
+/- 405 Vdc/+/-300Vdc
Battery ambient temperature [°C]:
25
Protections:
3 level alarms, Battery fuses, Charging current limit, temperature compensation (optional)
Automatic testing:
Standard every 72h (adjustable)
Output
Power factor:
0.9
Voltage:
380/400 Vac 3 phase+N (415 optional)
Total harmonic distortion THDv:
<3% (100% linear load)
Crest factor:
3:1
Voltage tolerance:
+/- 1%
Frequency [Hz]:
50/60
Frequency tolerance:
Line synchronized: +/-2%; free running: +/-0.1%
Transfer time [ms]:
0
Overload:
100-125% for 10 min; 125-150% for 1 min, >150% via by-pass
Efficiency:
up to 95%
Others
Communications:
2xRS232 serial ports, 4 standard lub 8 optional DRY contact alarm relays
Indicators:
P-N voltage, P-P volatge, Current, Power, Crest factor, Frequency, PF, Service time
Input:
EPO, Genset
Alarm logging:
Standard: with time and date 512 events
Protections:
Over temperature, Over current, Temperature high alarm
Standards:
EN62040-1, EN62040-2, EN62040-3
Protection degree:
IP 20
Operating temperature [ºC]:
0-40
Relative humidity:
90% max. (non-condensing)
Dimensions (WxDxH) [mm]:
1440x515x855
Weight without battery [Kg]:
209
Parallel operation:
Yes, up to 8 units (except the models Sigma 10S and 20S)
Cross-selling products
Karta SNMP
Karta komunikacyjna SNMP pozwala na czytelne przedstawienie informacji o stanie karty sieciowej ora…
More
