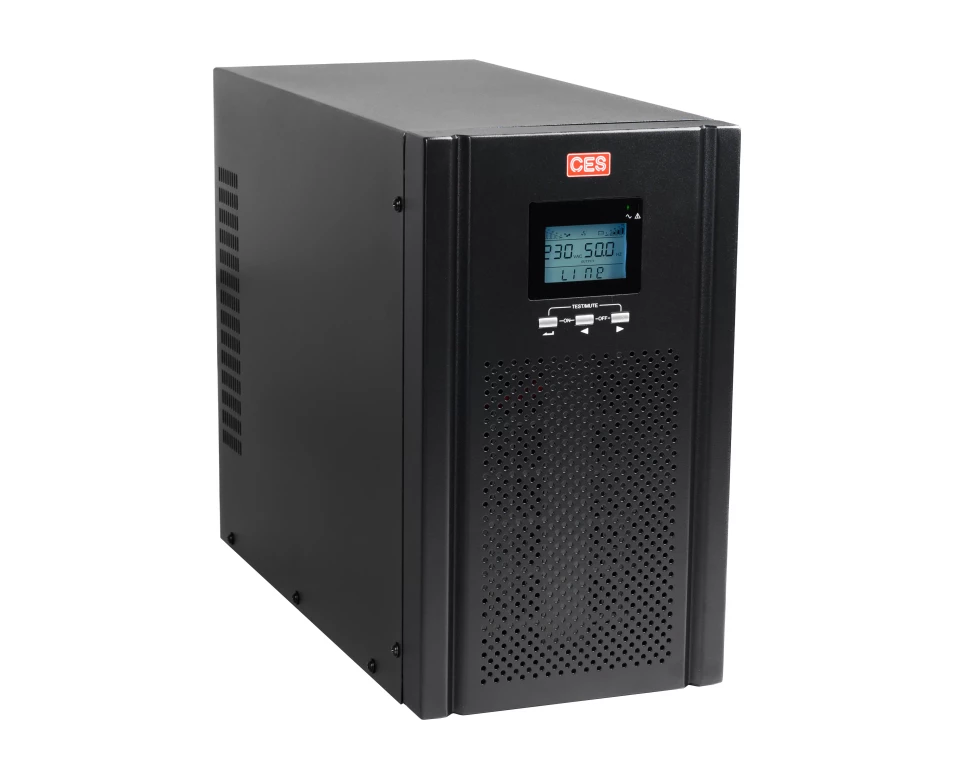

UPS CES Omega M 10kVA - 20kVA

UPS Omega M 10kVA and 20kVA is an uninterruptible power supply that has either 1-phase or 3-phase power on the input and 1-phase power on the output. The Omega UPS is a modern true online, double-conversion uninterruptible power supply with pure sine wave voltage and PF 1.0.
 Specification  Cross-selling products  Contact form

Main features

  • Tower cabinet
  • DSP control technology
  • Input power factor 0.99
  • Input power factor correction (PFC)
  • Output power factor = 1
  • ECO operation in energy-saving mode
  • EPO switch
  • Two frequency conversions
  • LCD display
  • Advanced ABM battery management
  • Automatic fan speed control with temperature change
  • RS232 and USB communication port; optional communication cards: RS485/SNMP, AS400, potential-free contacts, MODBUS

Characteristics

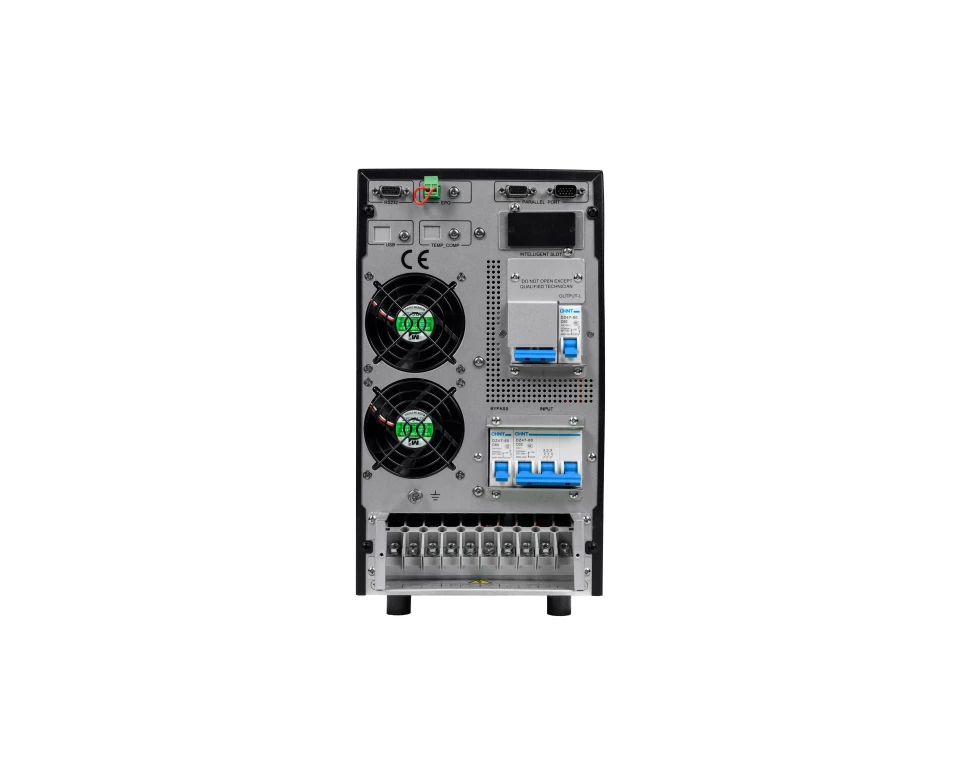

Rear view of a 10 kVA UPS with description

Zasilacz UPS Omega 10kVA - widok tył

1. RS232 port (DB-9 type) used for connecting monitoring software
2. EPO switch (Normally Closed - NC)
3. Parallel operation port (optional)
4. USB (type B) used for connection to monitoring software
5. Battery temperature sensor (optional)
6. Intelligent expansion slot, used to connect expansion cards

7. Service by-pass (standard), power output switch
8. Fans - automatic speed control
9. By-pass power circuit breaker
10. Input power switch
11. GND (Pe ground)
12. Power terminal strip and cover

Description of Omega M 10kVA and 20kVA UPS operating modes

Online mode

In this mode, the rectifier supplies the inverter with DC, the load is powered by the inverter and the charger charges the batteries.

Static bypass mode

In the event of a failure or overload of the inverter, the UPS will enter bypass mode. It is also possible to enter this mode manually by pressing the appropriate buttons. In by-pass mode, the load is supplied directly by the mains supply and the UPS is not able to protect the load from power outages.

Battery mode

In the event of a mains power failure in normal mode, the UPS will enter battery mode. In this mode, power is supplied to the inverter by the batteries.

ECO mode - not available for parallel operation

When the UPS is operating in ECO mode, the load is powered via the by-pass. The inverter is on standby, the charger operates normally. Efficiency is up to 98%, but the UPS may not protect the load from overvoltage interference. In the event of a mains power failure, the UPS enters battery mode.

Specification

UPS CES Omega 10M 10kVA

UPS CES Omega 20M 20kVA

UPS model i moc

Model:
UPS CES Omega 10M
Active power [W]:
10000
Nominal power [VA]:
10000

Input

Voltage:
3-phase power supply: 380/400/415; 1-phase power supply: 220/230/240
Frequency [Hz]:
50/60 (automatic detection)
Frequency tolerance:
40-70 Hz
Power factor:
≥ 0.99
Bypass voltage range:
-40% - +15% (settable)

Output

Voltage:
208/220/230/240 V (selectable)
Total harmonic distortion THDv:
≤1% linear load ≤3% non-linear load
Crest factor:
3:1
Voltage tolerance:
+/- 1%
Waveform:
Pure Sine Wave
Frequency [Hz]:
50/60
Frequency tolerance:
+/- 0.1
Transfer time [ms]:
0
Overload:
102% - 110% for 10 min 110% - 125% for 1 min 125% - 150% for 30s

System

Efficiency:
≥94%; ≥95% ECO mode
Display:
LCD+LED
Protections:
Short-circut – overload – overtemperature – excessive low battery – overvoltage – undervoltage – fans failure

Komunikacja

Standard configuration:
RS232/USB/EPO
Optional:
SNMP/ Modbus TCP/IP/ Modbus RTU/ AS 400

Others

Protection degree:
IP 20
Relative humidity:
0-95% (non-condensing)
Noise level:
≤58 dB (1 m)
Dimensions (WxDxH) [mm]:
191x495x350
Net weight [Kg]:
18.5

UPS model i moc

Model:
UPS CES Omega 20M
Active power [W]:
20000
Nominal power [VA]:
20000

Input

Voltage:
3-phase power supply: 380/400/415; 1-phase power supply: 220/230/240
Frequency [Hz]:
50/60 (automatic detection)
Frequency tolerance:
40-70 Hz
Power factor:
≥ 0.99
Bypass voltage range:
-40% - +15% (settable)

Output

Voltage:
208/220/230/240 V (selectable)
Total harmonic distortion THDv:
≤1% linear load ≤3% non linear load
Crest factor:
3:1
Voltage tolerance:
+/- 1%
Waveform:
Pure Sine Wave
Frequency [Hz]:
50/60
Frequency tolerance:
+/- 0.1
Transfer time [ms]:
0
Overload:
102% - 110% for 10 min 110% - 125% for 1 min 125% - 150% for 30s

System

Efficiency:
≥94%; ≥95% ECO mode
Display:
LCD+LED
Protections:
Short-circut – overload – overtemperature – excessive low battery – overvoltage – undervoltage – fans failure

Komunikacja

Standard configuration:
RS232/USB/EPO
Optional:
SNMP/ Modbus TCP/IP/ Modbus RTU/ AS 400

Others

Protection degree:
IP 20
Relative humidity:
0-95% (non-condensing)
Noise level:
≤58 dB (1 m)
Dimensions (WxDxH) [mm]:
191x495x515
Net weight [Kg]:
26.5
