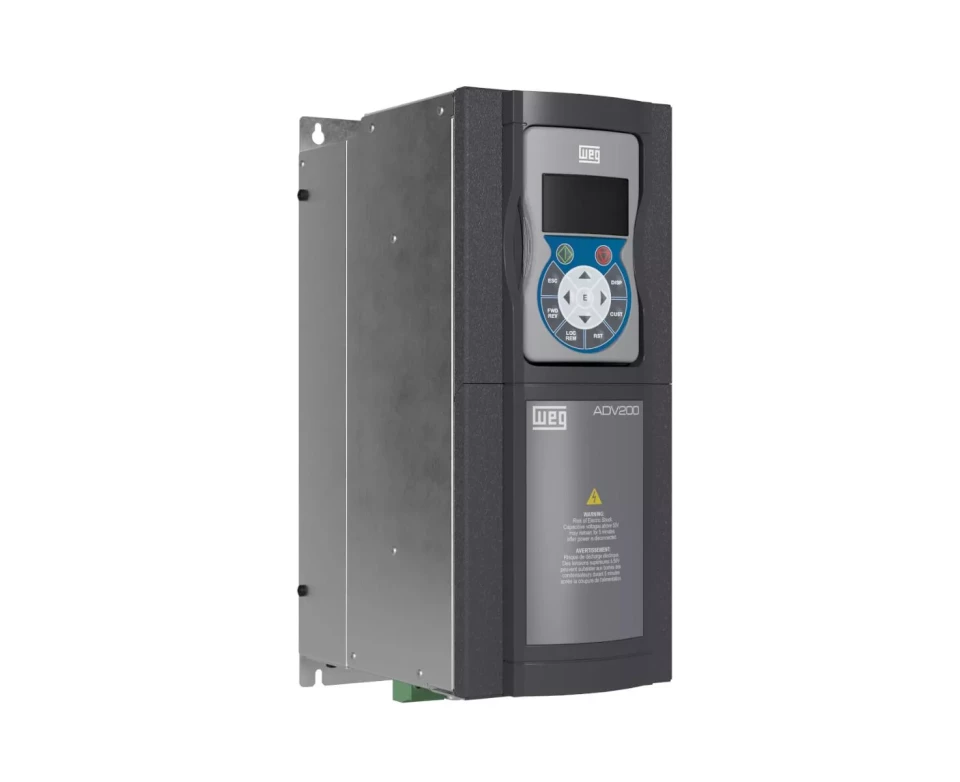

Drive ADV200
Karta katalogowa
New field vector oriented vector inverter - power range from 0.75kW to 1500kW.
Power supply: 3 x 400V, 480V, 500V, 575V, 690V, 50/60Hz.
Standards: CE, UL, cUL.
Power: 0.75kW - 1650kW
12 398 74 02Main features
- Built-in EMC filter
- Built-in choke
- Output frequency 0....600Hz
- Capable of operating in both encoder-coupled and decoupled (sensorless) mode or in V/F mode
- Built-in braking system up to 75 kW
- Selectable overload type (heavy applications 200% light applications 120%)
- four-line LCD display, user-friendly interface, communication in Polish
- Safety stop card - according to safety category III
- Integrated simple PLC functions
- Programmable inputs and outputs
- Built-in PID controller
- Full inverter and motor protection package (I2t)
- Automatic drive tuning
- Autorestart and switching on rotating motor
- RS485 (Modbus protocol)
- Safe supply of control circuits from external 24Vdc source
- Built-in PLC - programmable according to IEC61131-3
Characteristics
The Gefran ADV200 inverter represents an innovative concept in drive technology. Designed in accordance with international standards, it is characterised by outstanding reliability, durability and ease of use. The possibility of simple configuration makes the ADV200 series the ideal solution for demanding drive systems.
The modular installation structure, a power range of up to 1.5 MW and intuitive and advanced programming in the MDPLC environment (according to IEC 61131-3) make the ADV200 a flexible solution for high performance in any drive application.
Options
- Communication: Profibus/CANopen/DeviceNet/GDnet (real-time)
- Dedicated external EMC filters, chokes and braking resistors
- Additional I/O cards
- Built-in PLC - opens up unlimited possibilities for creating applications on request. The MDPLC tool used for this purpose complies with the 61131-3 standard. The wide I/O base and flexible drive software are the perfect tool for system integrators, OEM customers and other users with special requirements.
- Safety - optional safety-card
- The ADV200 frequency inverter can be equipped with an optional safety card - with safe stop function, suitable for category 3 installations according to EN 954-1. This feature prevents accidental and unintentional start-up of the drive.
